Self-Drilling Screws

Why 410 Self-Drilling Screws?

410 Self-Drilling Screws are bright hardened. This allows them to drill through steel and gives them a shiny stainless steel appearance.

Self-drilling screws are slightly magnetic which allows them to attach to magnetic hex drivers. This is great for one hand installation. This saves time.

Self drillers are used in mildly corrosive environments, otherwise 1000-hour coating can be applied for more corrosive applications.

Inquire for Product Quotes – Click on Product Images

Self-Drilling Screws
w/ Indented Hex Washer

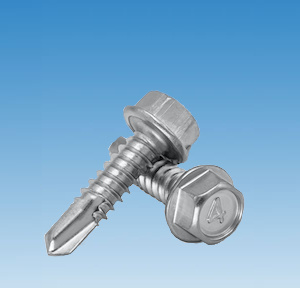

Self-Drilling Screws w/ Indented Hex Washer

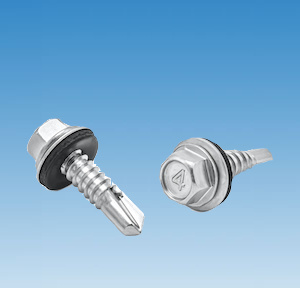

Self-Drilling Screws w/ EPDM Bonded Sealing Washers

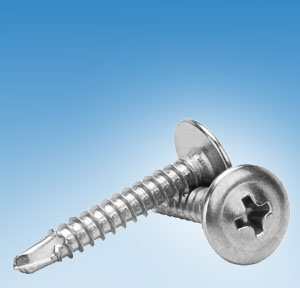

Phillips Pan Head Self-Drilling Screws

Phillips Pan Head Self-Drilling Screws

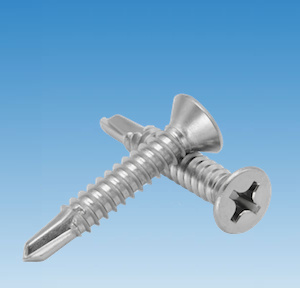

Phillips Flat Head Self-Drilling Screws

Phillips Flathead Self-Drilling Screws

Square Drive Pan Self-Drilling Screws

Square Drive Pan Self-Drilling Screws

Phillips Modified Truss Self-Drilling Screws

Phillips Pan Self-Drilling Screws Phillips Pan Self-Drilling Screws

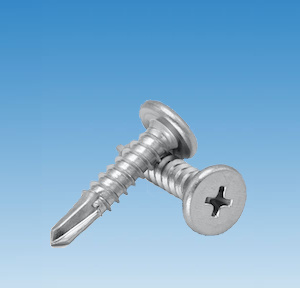

Phillips Pancake Head Self-Drilling Screws

Phillips Pancake Head Self-Drilling Screws

EPDM Bonded Sealing Washers

EPDM Bonded Sealing Washers

We offer a variety of self-drilling screw head types along with EPDM bonded sealing washers in stainless steel which can be assembled if needed.

Head Types:

  • Hex Washer Self-drilling screws
  • Hex Washer Self-Drilling screws with EPDM bonded sealing washers
  • Phillips Pan Self-Drilling screws (rounded head)
  • Phillips Flat Self-Drilling screws (countersunk)
  • Square Drive Pan Self-Drilling screws (for secure fit)
  • Phillips Modified Truss Self-Drilling screws (K-Lathe; large bearing surface with low profile also referred to as a wafer truss head)
  • Phillips Pancake Self-Drilling screws (clip screws; low profile)

Washers:

  • Bonded Sealing Washers assembled in house
  • 304 stainless (18-8) EPDM rubber bonded sealing washers are stocked that can be assembled to our 410 screws

We offer all of our stainless steel self-drilling screws in a variety of sizes, with different point types, head measurements, stainless steel types and platings, paintings and/or coatings. We even offer custom screw fabrication for those unique or extra challenging applications.

Features of 410 Stainless Steel Screws

  • No pre drilling needed
  • Self-drilling screws do not need a pilot hole, drills its own hole firmly into metal saving time and labor
  • Screw threads attach firmly into metal for a tight connection
  • “4” head marking is used to identify 410 stainless
  • Extra-long #5 drill point available to drill through thick metal. They can even drill through I-Beams 1/2″ thick
  • Hex Washer heads available up to 8″
  • Self-drilling screws are not for attaching into wood, plastic or other soft materials

Uses:

Solar racking • metal roofing • Standing seam metal roofs • metal construction • metal siding • Industrial insulation • fences • car ports • awnings and more

Our screws Can be coated with 1000-hour coating for additional corrosion protection

Distributor of Industrial Screws and Fasteners

Uses of EPDM Bonded Sealing Washers

Features of EPDM bonded washers

EPDM, or ethylene propylene diene monomer rubber is a synthetic rubber known for its outstanding use of:

Neoprene (Neo) Washers

In addition to EPDM washers, we also offer Neoprene washers. Neoprene, more formally known as polychloroprene (PC), is a synthetic rubber quite similar to EPDM. Neoprene washers are generally used in Interior applications, away from UV rays. Neoprene is highly resistant to chemicals and oils. These washers do a great job insulating against heat and moisture. These are a lower resistance range and less flexible at low temperatures therefore not recommended for direct contact with petrochemicals.
